2708 EPROM
1Kbyte x 8 Bit

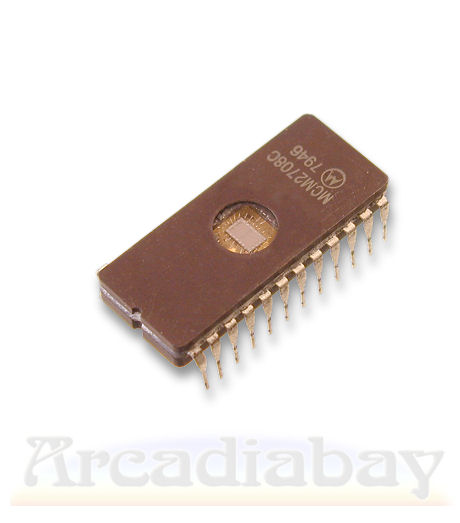

This device is an Electrically Programmable Read-Only Memory (EPROM). It

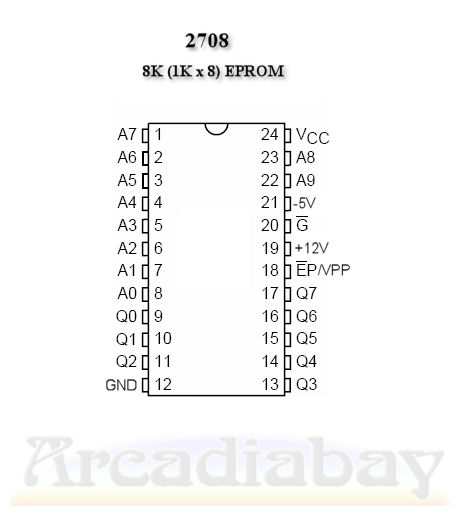

has a size of 8 Kbit, organized as 1024 Words by 8 Bit. The Memory cells can be
selected by 10 address lines (A0-A9)
and then switched to the data outputs
D0-D7 with OUTPUT ENABLE (/OE). Before that the EPROM must be activated with
CHIP SELECT (/CS).
Memory contents can be cleared by ultraviolet light, therefore EPROMs have a
transparent opening that is taped over with a Label after programming. Erased
EPROMs can be reprogrammed with an EPROM programmer. A 2708 need +5V/-5V
and +12V operating voltage, therefore most modern Programmers can't burn
this device.
Our EPROMs are used, but tested and erased. They are from different
manufacturers, but depending upon availability we consider your special
needs (type, access time, manufacturer… ). We also offer a programming Service
for EPROMs
