82S123 PROM (div.)

82S123 PROM

Manufacturer:	div. 2008
Serial-No.:	#3204
Genre:	Bipolar Proms
Type:	Original

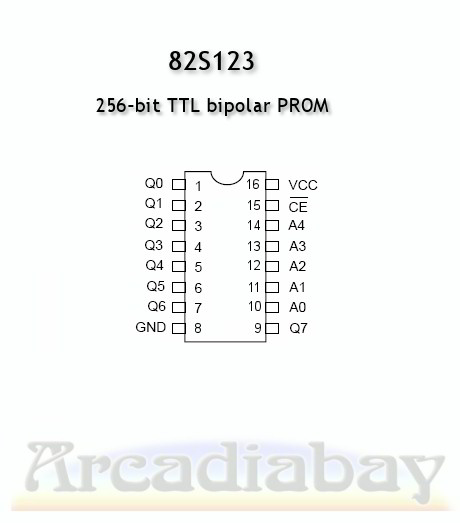

82S123 256-bit TTL bipolar PROM
The 82S123 is a one-time programmable device with a size of 256 Bit with 4 Address inputs and 8 3-State Outputs ( 8x32 Matrix ). These PROMs are often used in older Arcade PCBs, usually as Color PROM or Address decoder
The 82S123 is compatible with the following PROMs:

Fujitsu 7051 and 7112
AMD 27S19
NMI 6331
National 74S288
Texas Instr. 18S030
Harris 7603

PROMs can be programmed with the Data I/O 29B, for an extra charge we can ship the PROMs programmed from your Image.

Item	Manufacturer	Quantity*	Unit price**
82S123 PROM	div. 2008		12,90 €
* please select quantity and options ** all prices plus shipping
